ANATOMY OF THE COMET CHA-250BXII
Despite the mixed reviews(1), about 4 or 5 months ago (in 2007!) I decided to purchase a Comet CHA-250BXII
antenna. These are sold as a “broadband HF vertical that does not require radials”. Some people think they’re
the greatest thing since sliced bread; others rate them as a glorified dummy load. Interestingly, there don’t
seem to be too many people with an intermediate view; they either love it or hate it.
Physically, the antenna consists of a 7m aluminium element fitted to the top of a 140mm tall “black canister”,
the contents of which seem to be the subject of much speculation.
Electrically, the vertical element has the following lengths:
3.60 MHz 0.084λ
7.10 MHz 0.166λ
10.13 MHz 0.236λ (~1/4λ)
14.20 MHz 0.331λ (~1/3λ)
18.17 MHz 0.424λ
21.20 MHz 0.495λ (~1/2λ)
24.95 MHz 0.582λ
28.50 MHz 0.665λ (~2/3λ)
A couple of weeks ago my antenna developed a fault which, while it prevented me from transmitting into the
antenna (SWR went high), had no noticeable affect on its receiving performance. At this point I had two choices:
(a) Return it to the place of purchase since it’s still under warranty or
(b) Attempt to find and fix the fault.
Being the inquisitive sort that I am, I decided to try and fix it. This entailed some risk since it would obviously
void the warranty and there was no guarantee of success. The following is a description of the disassembly
procedure I used and what I found inside.
A word of warning!This device is not designed to be dismantled. While everything is screwed together, every
thread has been liberally coated with glue during manufacture and only comes apart with great difficulty. I had
to saw through the plastic top cap to remove it. If you decide to dismantle yours at any time then do so at your
own risk.
The following pictures are actually in reverse order because they were taken after I had dismantled the unit.
This first image is of the antenna base assembly. This was taken after I had put everything back together. You
can see the silicone I applied to the joints to help seal out moisture (which turned out to be the cause of the
fault).

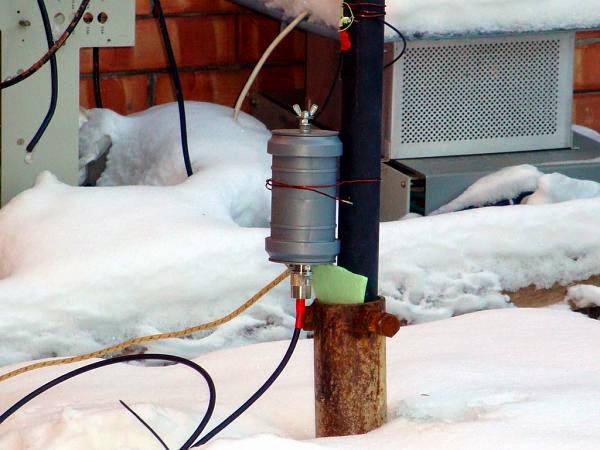

Image 1 - Antenna Base Assembly
Image 2 shows the matching unit (a.k.a. black canister, dummy load) removed from the antenna base.
Image 2 - The mysterious "Black Canister"
Image 3 shows how the top and bottom sections are screwed into the central section (bit with the fins). Before
Inside the CHA-250BXII Antenna Sayfa 1 / 5
http://www.vk5zd.com/CHA250/CHA250.aspx 28.01.2014
the top can be removed, you must first remove a small grub screw that locks the top aluminium piece in place.
You can then start to unscrew the central spigot at the top. Note that this has a wire soldered into the centre of
it. Don’t even bother trying to undo this joint with your average soldering iron; it requires too much heat. As you
undo this spigot you will be twisting the attached wire. This doesn’t matter since there’s plenty of it inside. Once
the screw has been undone to the end of the thread, hold the end spigot with a pair of pliers and heat with a gas
blowtorch to melt the solder and pull the spigot off the wire.
Image 3 - Showing how the top and bottom sections are screwed in.
Image 4 shows the parts in the top section assemble. Once the spigot, washers, etc. have been removed the
black plastic cap can, in theory, be unscrewed. In practice, the torque required to break the glue on the threads
is colossal. What I did next (after trying various things involving hammers and screwdrivers) was to carefully
saw into the plastic cap (with a hacksaw) right next to the fins. Bear in mind that, at this stage, I didn’t know
the cap was screwed in; I assumed it was just glued in. I had to cut to a depth of 10-12mm before the cap came
off. This left the part with the threads still in the top of the central section. Using a hacksaw blade I made two
cuts through this piece 180° apart. After this a light tap with a hammer was enough to break the glue and the
two pieces came out. With hindsight you could perhaps drill some holes in the cap so that a specially fabricated
lever can be attached to it with screws. You might then be able to apply sufficient torque to unscrew it in one
piece, but I still think it unlikely. At this point I was left with the plastic cap in three pieces; the top cap plus the
threaded section in two halves. These were put back together with superglue and some small self-tapping
screws (the cap in images 3 and 4 is after I put it back together).
Image 4 - Top section parts.
Images 5 and 6 show the matching unit with the top cap removed. There are two wires going to the SO-239
socket in the base. These are just visible through the central assembly. In my case, the ground wire to the
socket was already broken due to corrosion. After much poking and prodding with a screwdriver I managed to
break off the second wire at the centre pin of the coax socket. The central assembly was then pulled out of the
canister.
Inside the CHA-250BXII Antenna Sayfa 2 / 5
http://www.vk5zd.com/CHA250/CHA250.aspx 28.01.2014
Image 5 Image 6
Next I used two of the mounting holes in the base to attach the canister to a piece of 4mm thick steel strip
which was in turn held in a vice. A vehicle oil-filter removal tool was then used to unscrew the central section
from the base. Even with this arrangement, I still had to heat the join between the two sections with a gas
blowtorch to soften the glue before I could undo it (hence the need to break wires and remove the insides first).
This is the cause of the discolouration visible on the lower part of the fins in images 2 and 3. Image 7 shows the
aluminium sleeve after removal from the base.
Image 7 - Threaded aluminium sleeve.
THE BITS INSIDE
Images 8 to 12 show the matching unit assembly. The small fibreglass cylinder in image 8 is used as packing to
make sure the parts can’t move around. The matching unit appears to be a transformer with a ratio of about
12:1. The ring at the end of the wire with clear insulation goes under the nut on the SO-239 socket while the
green/yellow wire goes to the centre pin. The black wire on the right goes to the antenna element.
Image 8 - Matching unit side ‘A’.
Inside the CHA-250BXII Antenna Sayfa 3 / 5
http://www.vk5zd.com/CHA250/CHA250.aspx 28.01.2014
Image 9 - Matching unit side ‘B’.
The brass tubes through the toroids are the first “turn”. The two tubes are joined at the top and this point is
connected to ground. The bottom end of one tube is connected to the coax centre while the bottom of the other
end connects to the start of the coil that goes through the tubes. The end of the last turn goes through one of
the tubes then loops back to the top (left hand tube in image 10).
Image 10 Image 11 Image 12
Images 13, 14 and 15 show the parts in the bottom section assembly. Note that the base section is threaded to
take the SO-239 socket. Image 16 shows the matching unit refitted to the base section prior to reassembly.
Image 13 Image 14 Image 15
Image 16 - Matching unit fitted to base section.
Inside the CHA-250BXII Antenna Sayfa 4 / 5
http://www.vk5zd.com/CHA250/CHA250.aspx 28.01.2014
Image 17 – Test setup. Image 18 – Test results. Image 19 - Internal
circuit.
Image 18 shows the loss over the range 3 – 30 MHz. The upper trace is the 0 db line. The markers are at 10
MHz intervals. The vertical scale is 2.5 db per division. This is not an entirely accurate test because the output
impedance of the matching unit is nowhere near 50Ω.
The sketch above gives a clearer view of how the matching unit is wired up. I will try to answer any questions
you may have regarding the construction of this device. Please send them to cha250 at vk5zd.com (replace 'at'
with @).
73
Iain Crawford
VK5ZD
References:
(1) eHam.net - http://www.eham.net/reviews/detail/5175
